Guitar drill press: buying guide

I still remember the first time I had to drill a guitar body for potentiometers. I had my trusty hand drill, a wood bit that had seen better days, and a cold sweat running down my back. The result? A decent hole, yes, but slightly crooked and with some chipping on the edge. Not a disaster, mind you, but enough to make me realize there was a better way. And that way, for me, was the column drill. I am not a professional luthier, I've said it and I repeat it. I learned in the garage, with the tools I could afford, and I made more mistakes than I like to admit. But every mistake was a lesson, and one of the biggest was this: certain jobs require precision, and for precision, sometimes, you need the right tool. The guitar drill press, or rather, for violin making electric DIY, falls into that category. It's not essential for your first guitar, but I assure you it will change your life. I've read a lot of discussions on Reddit and American forums, I've seen people asking “Is it really necessary?” and others responding “Absolutely yes!”. And the truth lies in the middle, as always. If you make one guitar per year, maybe you can manage. If you make two or three, or if you want your projects to have a more professional look, then yes, start thinking about it. This guide is for those who, like me, have realized that certain initial “savings” come at a high cost in terms of time, frustration, and sometimes, ruined pieces of wood.

Why a drill press and not the usual hand drill?

Why should I spend money and take up space for a tool that, ultimately, does the same thing as my portable drill? The answer is simple: precision, repeatability, and safety. Three fundamental keywords when working on a piece of wood that is worth hours of your time and perhaps even a few hundred euros. With a hand drill, the risk of a crooked hole is always around the corner. Just a minimal flex of the wrist and the bit deviates. This results in misaligned potentiometers, slightly off-axis bridges, or mechanical holes that are not perfectly perpendicular. Once you have a crooked hole, straightening it is almost impossible without leaving visible marks. The column drill almost completely eliminates this problem. The bit descends vertically, guided by a rigid column, ensuring that the hole is perfectly perpendicular to the surface. There's no room for angle errors, a huge advantage in lutherie. Another crucial aspect is depth consistency. Many holes on a guitar are not through-holes, but “blind” ones, such as those for humbucker pickups or the bridge housing. With a drill press, you can set a depth stop that allows you to drill exactly to the desired point, without risking drilling through the body or leaving the hole too shallow. This is a lifesaver, especially on thin bodies or with laminated tops. Let's talk about safety. Holding a piece of wood steady with one hand while drilling with the other can be dangerous. With a drill press, the piece is securely clamped to the workbench with clamps or a dedicated vise. This not only improves precision but also allows you to keep your hands safe. Specific applications in lutherie are numerous: holes for pickups, for bridge posts, for tuners on the headstock. Even an apparently simple job like drilling for potentiometers or switches will be cleaner and more professional. I remember when I tried to drill the string-through holes on a Telecaster body with a hand drill. Not only did I struggle to keep the drill straight, but I also had a bad “breakout” (chipping) on the back. With a drill press, I could have securely clamped the body, used an appropriate speed, and placed a “backer board” to prevent chipping. It was a costly lesson learned, which pushed me to invest in the right tool.

What to look for in a drill press for lutherie? Key features

Advertisement

PRS SE Custom 24 Exclusive, Orange Tiger Smokeburst

★ 4.6 (31 reviews)

See on Amazon

not all the pillar drills are equal, and choosing the right one for lutherie requires looking beyond the price. There are some fundamental characteristics that will make the difference.

Engine power (HP, Watt)

For wood, especially hardwoods like maple or ebony, you will need sufficient power. A 350-500 Watt (about 1/2 HP) motor can be fine for most light work and small diameter holes. However, if you intend to use large diameter Forstner bits or work particularly hard woods, I recommend aiming for at least 500-750 Watts (3/4 – 1 HP). A more powerful motor will work with less effort, which means less vibration, greater precision, and longer life.

Speed (RPM) and variability

The spindle rotation speed (RPM – revolutions per minute) is crucial. Different bits and materials require different speeds. Small diameter bits and softwoods require higher speeds; large diameter bits (like Forstner) and hardwoods require lower speeds to avoid overheating and achieve a cleaner cut. Many economic models have 5-9 fixed speeds, adjusted by changing the position of a belt. Mid-range and high-end models often offer an electronic speed variator or a greater number of ratios, for more precise and rapid adjustment. Look for a model with a wide speed range, from 300-400 RPM up to 2000-3000 RPM.

Spindle travel (quill travel)

This è one of the most important specifications for lutherie. The spindle travel è the maximum distance the bit can travel vertically. Many guitar bodies have a thickness of 40-50 mm. A drill with a travel of only 50 mm could be at the limit. I recommend a model with a travel of at least 60-70 mm (approximately 2.5-3 inches). This will give you a safety margin for almost all through holes on a standard body.

Distance from spindle to column (throat depth)

Also known as “throat”, this is the horizontal distance from the center of the spindle to the column. It determines the maximum width of the workpiece you can drill in the center. A guitar body can be as wide as 30-35 cm. For most electric guitar bodies, a throat of about 15-20 cm (6-8 inches) is sufficient, allowing you to drill in the center a piece up to 30-40 cm wide.

Worktop dimensions and inclination

The workbench must be large enough to firmly support the workpiece you are drilling. A surface of about 20×20 cm is a good starting point. Many surfaces can also be tilted, useful for angled holes, and rotated around the column for optimal positioning.

Stability and robustness (weight, materials)

A pillar drill must be stable. Vibrations are the enemy of precision. A heavier drill, with a robust cast iron base and a generously sized column, will be intrinsically more stable and precise. Cheaper, lighter models can vibrate and flex. Do not underestimate the weight: a 30-40 kg drill will be much more stable than a 15-20 kg one.

Spindle (chuck) and precision (runout)

The chuck must be of good quality, easy to tighten and precise. Precision is measured by “runout”, which is the deviation of the bit from its ideal axis. High runout means that the bit “wobbles”, making perfectly round holes impossible. To learn more about the concept of runout, you can consult this technical explanation. To test the runout, insert a long, thin bit into the chuck, tighten it, and turn it slowly. If you see obvious lateral movement, the runout is excessive. Keyless chucks are convenient but sometimes less precise. For lutherie, a good keyed chuck is often preferable.

Useful accessories

Some accessories can improve the user experience:

• Drill vice: Indispensable for holding small or irregular pieces.
• LED lights: To illuminate the work area.
• Aiming Laser: Comfortable, but not always perfectly calibrated. Precise marking with an awl is always the best solution.
• Chip extraction system: Useful for keeping the environment clean.

Types of drill presses: bench vs. floor

The first major distinction è between benchtop models (benchtop) and floor-standing ones (floor standing). The choice depends heavily on your needs, space, and budget.

Benchtop drill press (benchtop drill press)

Designed to be placed on a workbench, they are the most common among hobbyists.

Pros:

• Lower cost.
• Less bulky.
• Relatively easier to move.

Against:

• Power, stability and spindle travel often limited.
• Throat usually smaller.

Ideal for:

The amateur luthier with limited space or who makes a few guitars per year. Excellent for most holes on bodies, necks, and headstocks.

Floor standing drills (floor standing drill press)

Larger and heavier models, they rest directly on the ground and are designed for intensive use.

Pros:

• More powerful engines.
• Extremely stable and precise.
• Greater stroke and throat.
• More adjustable surface height.

Against:

• Significant cost and bulk.
• Difficult to move.

Ideal for:

Those who make lutherie a serious passion or have a dedicated workshop. If you build many guitars, work on complex designs or use exotic woods, it will pay off the investment. For most of us who build guitars in the garage, a good column drill a mid-range benchtop is more than sufficient, the important thing is to choose a robust and precise model.

Recommended budget and models: spend well without regrets

Let's now address the budget. I've learned that sometimes saving too much at the beginning costs you more in the end. The goal is to spend well, finding the right balance between cost, performance, and durability.

Low-End (under 200-250€): The bare minimum to start

If your budget is limited, you can find something, but you'll have to compromise on power, precision, and build quality.

Typical features:

• Motor: 350-500W.
• Speed: 5-9 fixed (belt).
• Spindle travel: 50mm.
• Chuck: Often with key, higher runout.
• Construction: Less robust, more vibrations.

Examples of brands (or generic models):

Einhell, Parkside (Lidl), Fervi (entry-level), or white-label brands. I had a small Einhell at first. It worked, but it was noisy, vibrated, and the 50mm travel caused me difficulties.

Pros:

• Very low purchase price.
• Suitable for small holes and occasional work.

Against:

• Low power, limited precision, questionable durability.
• Spindle travel often insufficient.

Advise:

If the budget is strictly under 200€, consider a good used branded item. Otherwise, only use it for small, undemanding holes.

Mid-Range (250-600€): The smart compromise

This is the range where, in my opinion, you find the best quality/price ratio for the hobbyist luthier. Here you'll find machines with a good balance of power, precision, and functionality.

Typical features:

• Motor: 500-750W (3/4 HP).
• Speed: Continuous electronic variator or 12-16 mechanical speeds.
• Spindle travel: 60-80mm.
• Chuck: Good quality, with acceptable runout.
• Construction: More robust, fewer vibrations.
• Extras: Often LED lights or laser.

Examples of brands (or plausible specific models):

Scheppach, Fox, Bosch (e.g. PBD 40), Ryobi, Ferm. I had a Scheppach DP16VL for years, a good workhorse. The Bosch PBD 40 is often cited for precision and digital display.

Pros:

• Excellent balance between power and precision.
• Greater versatility and good durability.
• Spindle travel adequate for almost all bodies.

Against:

• Significant investment compared to basic models.
• Might not be enough for extremely heavy-duty work.

Advise:

This is the “sweet spot” for the advanced hobbyist. It will save you many frustrations and allow you to achieve professional quality results. Look for models with electronic speed variator and good spindle travel.

High-End (over 600€): For those who don't want compromises

If lutherie is a serious passion, almost a job, or if you have extreme precision needs and a generous budget.

Typical features:

• Motor: 750W (1 HP) or more, often induction.
• Speed: Very wide and precise continuous electronic variator.
• Spindle travel: 80-100mm or more.
• Chuck: Very high quality, Morse taper attachment, minimal runout.
• Construction: Entirely cast iron, zero vibrations.
• Extras: Advanced lighting, quality clamps, digital displays.

Examples of brands:

Jet, Optimum, Record Power, Delta, Powermatic. These are the machines you find in professional workshops. A luthier friend has a Jet JDP-17, the difference is palpable.

Pros:

• Maximum precision and stability.
• Unlimited power for any operation.
• Exceptional durability, machines made to last decades.

Against:

• Very high cost.
• Significant bulk and weight.
• It might be “overkill” for the occasional hobbyist.

Advise:

If lutherie is your calling and you have the resources, a drill press in this range is an investment you won't regret. It will allow you to achieve impeccable results. Regardless of the price range, my final advice is always to read reviews, watch videos, and, if possible, try the tool before buying it. Don't just trust catalog specifications.

Practical guide to using the drill press for guitar

Having the column drill right is only half the battle. Knowing how to use it correctly, safely, and with the appropriate techniques will allow you to achieve the desired results and not ruin your precious wood.

Safety first

I will never tire of repeating it: safety is fundamental.

1. Goggles: Always, without exception.
2. Gloves: Avoid loose gloves that could get caught.
3. Hair and clothes: Tie back long hair and make sure there are no loose garments.
4. Clean work area: Remove tools and debris from the table.

Workpiece clamping: NEVER freehand!

This is the most common and most dangerous mistake.

• Drill vice: For small or irregular pieces, the best solution.
• C-clamps or bar clamps: For larger pieces like guitar bodies, to firmly secure the wood to the table. Always use a “backer board” (scrap piece of wood) underneath to prevent chipping.
• Stand: If the piece is very long, use an additional support.

Remember: if the piece moves while the bit drills, not only will the hole be crooked, but there is a serious risk of accidents.

Choosing the right drill bit

Not all bits are equal.

• Twist bits for wood: Good for small and medium diameter holes. “Brad point” bits prevent the bit from slipping.
• Forstner Bits: Essential for flat-bottomed and large diameter holes (pickup cavities, potentiometers). They produce clean edges. Use at low speed.
• Spade bits: Cheaper, but tend to tear the wood. I do not recommend them for quality lutherie.
• Countersinks: For conical recesses for countersunk screws.
• Metal bits (HSS): Useful for metal parts.

Cutting speed (RPM)

Speed is crucial for a clean cut and for the life of the bit.

• Small bits and softwoods: Higher speeds (e.g. 1500-2500 RPM).
• Large bits (Forstner) and hardwoods: Lower speeds (e.g. 400-800 RPM) to avoid overheating and burning.
• Metal: Generally low speeds, with lubricant.

There is no universal table, but it is a good rule to start with a low speed and increase it gradually. If you see smoke or smell burning, the speed is too high or the bit is dull.

Drilling techniques

• Through holes: Always use a “backer board” under the piece to prevent wood tear-out (breakout).
• Blind holes: Precisely set the depth stop. Always do a test on a scrap piece.
• Countersunk holes: First drill the through hole, then use the countersink.
• Marking: Use a pencil and awl to mark the exact center of the hole.

When drilling, never force the spindle down. Apply constant but not excessive pressure. For Forstner bits and deep holes, periodically lift the bit to remove chips and dissipate heat.

Maintenance

A column drill A well-maintained one will last a long time and be precise.

• Cleaning: After each use, clean the table and the column.
• Lubrication: Moving parts benefit from light periodic lubrication.
• Straps: Regularly check the status and tension.
• Spindle: Clean the inside and the jaws.

For modifying existing guitars, the drill press is just as useful. Do you want to add a kill switch, drill for a new potentiometer, or reposition a jack? With the right equipment and a little care, you can do everything cleanly and professionally. Check out our article on how to modify a guitar for other ideas.

Common mistakes to avoid

Even with the best column drill, mistakes can be made. Learning from the mistakes of others (and mine!) is the cheapest way to improve.

• Do not stare at the piece: The number one mistake. An unfixed piece can rotate, causing injuries or ruining the work.
• Using the wrong speed: Too high burns, too low is inefficient. Consult the guidelines and do some tests.
• Blunt tips: A dull bit tears and generates heat. Invest in good bits and sharpen them.
• Forcing the spindle down: It doesn't speed up the process, but it increases the risk of bit breakage and inaccuracy.
• Not considering the spindle travel: Always plan your holes according to your drill's capacità.
• Buying an undersized drill: I made this mistake. Buying the cheapest model thinking you're saving money, only to find out it's not suitable. Better to wait and save for a mid-range model.

An error I made, and that I often see being made, is not using a scrap piece under the wood. I ruined the back of a mahogany body for not having spent 30 seconds putting a piece of MDF under the bit's exit point. The “breakout” was ugly, and I had to do extra puttying and sanding work. A small precaution can save hours of work.

Conclusion

Invest in a good column drill It is one of the best decisions you can make for your DIY lutherie adventure. It is not a luxury, but a tool that elevates the quality of your work, saves you time and frustration, and allows you to tackle projects with a confidence and precision that a hand drill can never offer. From pickup cavities to bridge holes, through tuners and potentiometers, every detail counts in a well-made guitar. Remember the key points: adequate power for your woods, a versatile speed range, sufficient spindle travel and, above all, good spindle stability and precision. By choosing carefully based on your budget and needs, you can take your guitar building and modification projects to a higher level. Don't be afraid to spend a little more for quality: it is an investment that pays off over time, in satisfaction and in guitars that sound and look like you've always dreamed.

FAQ

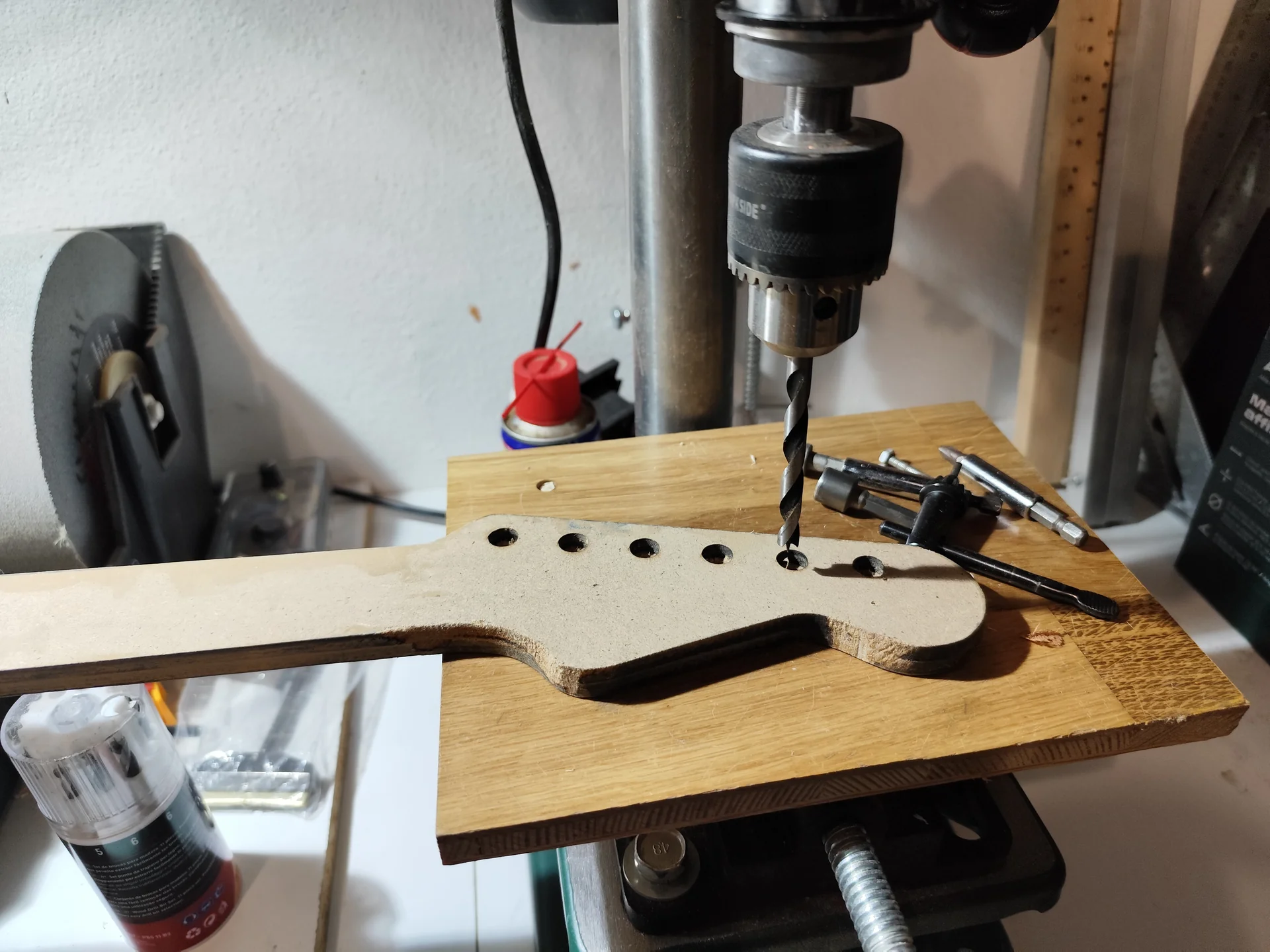

Is it possible to use a drill press to drill the headstock for tuners?

Absolutely yes, in fact, it is one of the most common and advantageous uses. The vertical precision of the drill press ensures that the holes are perfectly perpendicular to the headstock, which is crucial for the correct functioning of the mechanics and for a professional appearance. It is essential to firmly secure the headstock to the workbench and use a backer board to prevent chipping on the back.

What is the main difference between an inexpensive drill press and a mid-range one?

The main difference lies in the build quality, engine power, and overall precision. Economical models often have less powerful motors, more vibration, higher spindle runout, and limited spindle travel. Mid-range drills offer a better balance, with more robust motors, less vibration, more precise spindles, and greater versatility in terms of speed and drilling depth, making them much more reliable and durable for the hobbyist.

Can I also use a drill press for general woodworking?

Of course! A column drill It is an extremely versatile and useful tool for a wide range of woodworking jobs, not just for lutherie. You can use it to build furniture, create joints, drill for dowels, make grooves and much more. It's a great addition to any workshop, increasing precision and safety in many operations that would otherwise be more difficult or dangerous with a hand drill.
